Wear Risistant Anti Static PVC Sheet Permanent Antistatic Function Available

Basic Information
Place of Origin: China
Brand Name: ESTY
Certification: ISO/SGS
Model Number: ESD
Minimum Order Quantity: 100SQM
Price: price discussion
Packaging Details: 16rolls/pallet ,10pallets/20GP
Delivery Time: 7-10 work days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 1000000 Square Meter/Square Meters per Month
Detail Information
Product Name: 2 * 20M Anti Static Pvc Sheet Conductive Roll 3 Mm Vinyl Sheet Certificate: CE
Wear Group: P MOQ: 100SQM
Thickness: 2-3mm Size: 2*20m
High Light:

anti static conductive flooring

,

anti static epoxy flooring


Product Description

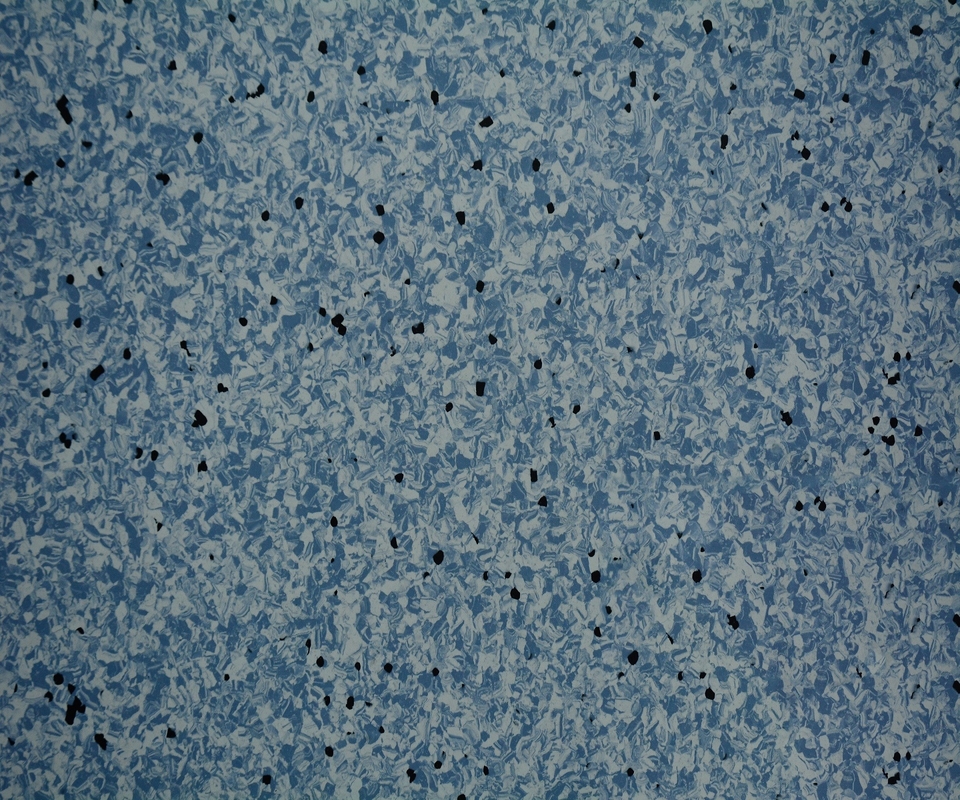

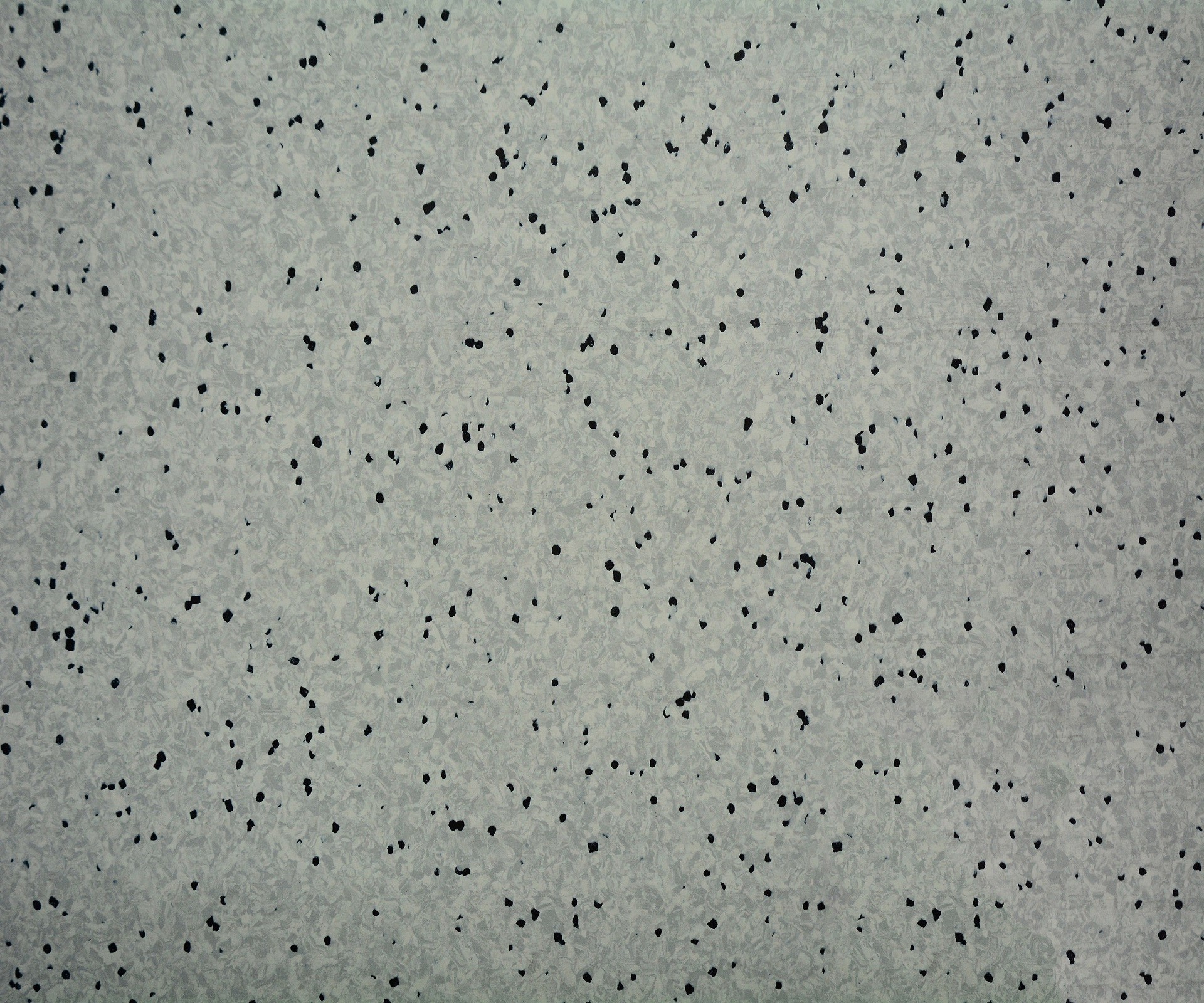

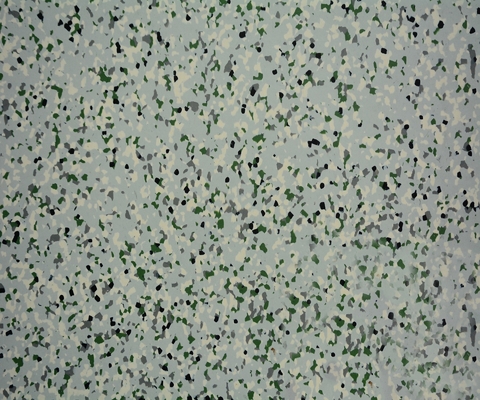

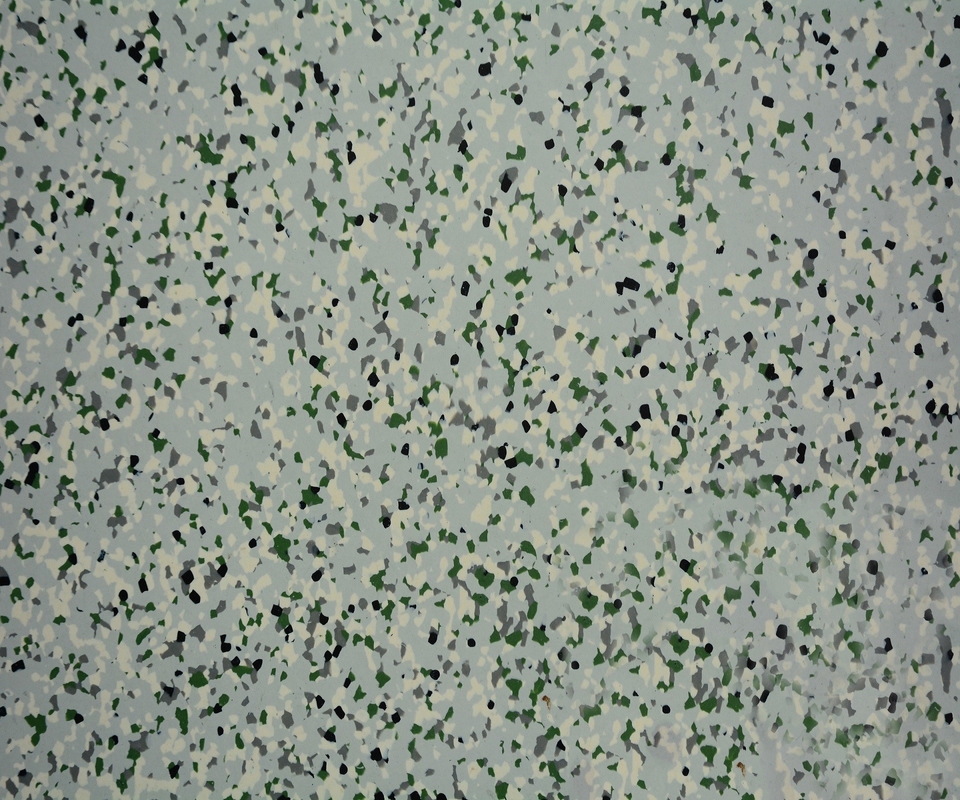

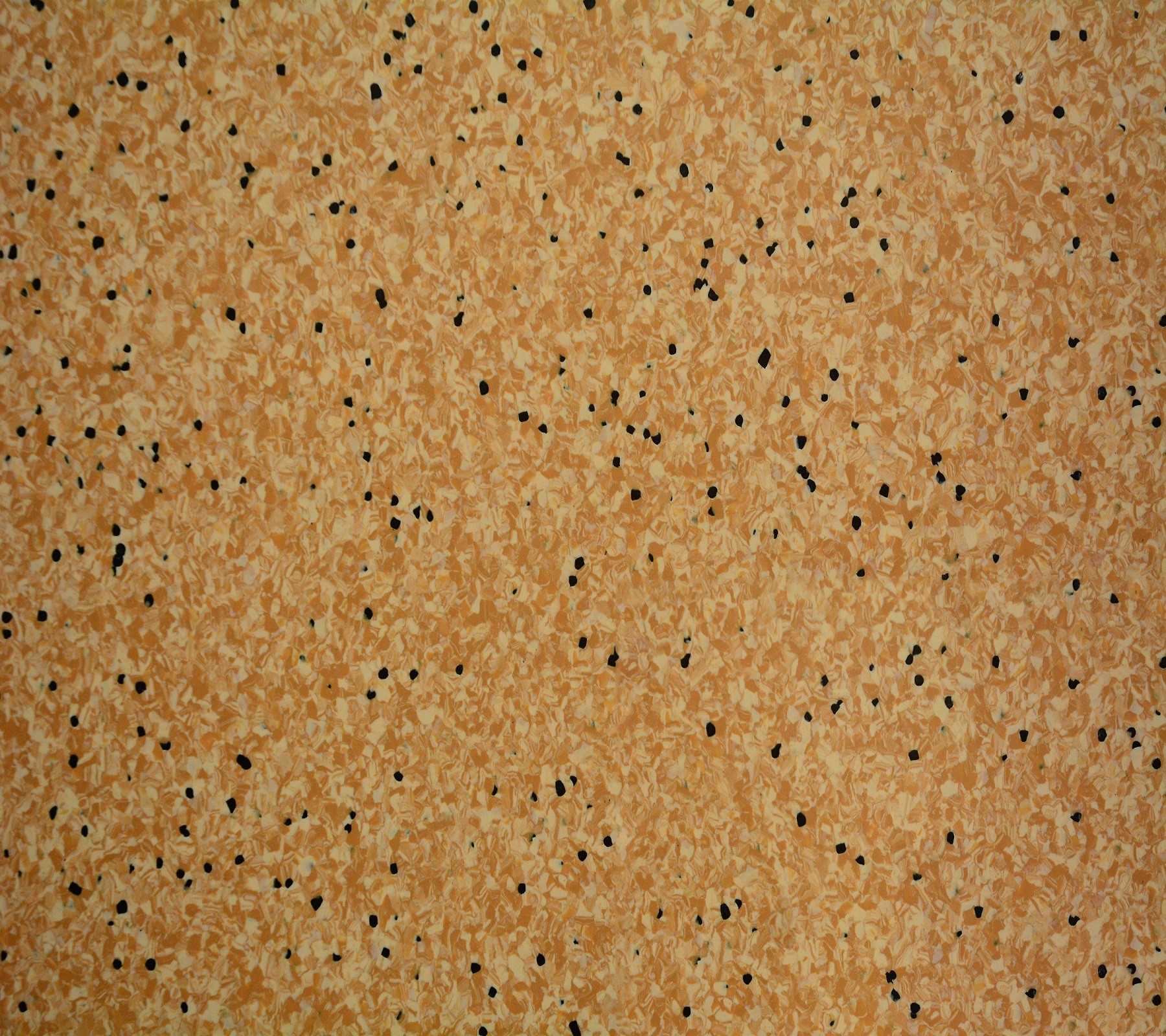

2 * 20M Anti Static Pvc Sheet Conductive Roll 3 Mm Vinyl Sheet


This product is made of PVC, plasticizer, stabilizer, coupling reagents and conductive materials, has permanent antistatic function.widely applied to electronics, microelectronics, telecommunications, network floor, clean room, computer room and other precision instrument and room for equipment operation.


Thickness:2.0mm
Backing:Dense Bottom
Width:2M
Material:PVC
Roll length:20M per roll,or as per your request
Design:popular desings, comfortable to step on ,widely used in hospital,office,electronics,Mircroeletronics,tele communications environment,Rasied access floor,health equipment,clean romm,computer room.,etc.
Features:waterproof,anti-skid,flameproof, wear risistant ,easy to clean,decorated,etc.




Product Specification

DISCRIPTION UNIT
Type of flooring   Homogeneous PVC flooring
Thickness mm 2.0~3.0
Weight g/m2 3200
Width mm 2
Length mm 15~20
Fire resistance   B1
Electrical resistance kv ≤2
Slip resistance dry   ≥0.3
Slip resistance wet   R9
PERFORMANCES
Abrasion group   P
Abrasion resistance mm ≤0.10
Castor wheel test   Suitable
Residual indentation mm ≤0.04
Color fastness   ≥6
Thermal resistance m2k/w ≈0.01
Dimensional stability % ≤0.10
Chemical products resistance   Very good
Toxic testing   Suitable
Tolerance for width and length mm ±0.15
Residual indentation mm ≤0.15mm
Dimensional change on heating % ≤0.20
abrasion wear g/cm2 ≤0.020
Voltage   |V|<100V
Decay time   <2S
Electric properties conductive <1.0×106Ω
  dissipative 1.0×106Ω~1.0×109Ω



Packing & Shipping

thickness packing details
2mm 16rolls/pallet ,10pallets/20GP,6400sqm/20GP
3mm 16rolls/pallet ,10pallets/20GP,4800sqm/20GP
